TH-3060-UFL

Ultra slim full motion. Max weight: 35kg Universal VESA up to 500x700
Overview

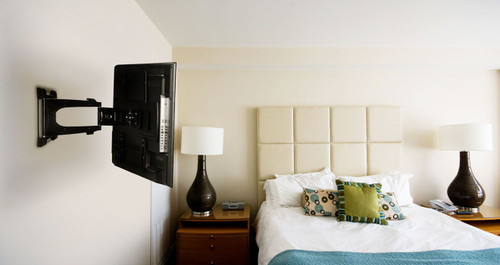

For flexible and sleek wall mounting of a medium to large screen TV, the TH-3060-UFL is the perfect solution. The ultra slim articulated arm has three pivot points for tilt, pan or horizontal adjustment to perfect your screen display to suit your environment. The arm comes pre-assembled for a quick and easy installation, and once fitted safely holds your screen less than 49mm from the wall (2") for a streamlined finish. Pre-assembled for quick and easy installation, the latched quick attachment system ensures safe installation with minimal time and effort. Integrated cable management professionally finishes your display.

  • Ultra slim mount, display sits only 49mm (1.9") from wall
  • Full range of motion via 3 pivot points
  • Adjustable tilt and pan and horizontal fine tuning
  • Integrated cable management
  • Comes pre-assembled for quick and easy installation
  • All mounting hardware included
  • 10 year warranty
VESA compatibility
Video Instruction
Specs
Specs
Product Details
Product code TH-3060-UFL
Material Steel and aluminium
Warranty 10 years
Compatibility
Minimum display weight 0
Maximum display weight 35
VESA mounting hole pattern Universal
Universal width (mm) From 200 to 700
Universal height (mm) From 100 to 500
Range of movement
Range of motion Full motion
Spring assisted height adjustability No
Tilt adjustment 20° downward tilt
Pan adjustment 90° left and 90° right
Horizontal levelling adjustment 5° left and 5° right
Height adjustable No
Landscape to portrait screen rotation No
Minimum distance from wall (mm) 49.5
Maximum distance from wall (mm) 625
Installation
Cable management Integrated cable management
Security features -
Mounting hardware included Yes
Packaging dimensions
Length, single unit (cm) 82
Width, single unit (cm) 33.2
Height, single box (mm) 7
Weight, single unit (kg) 8
Shipping weight, single unit (kg) 8
Single units per master pack 2
Length, master carton (cm) 84
Width, master carton (cm) 36
Height, master carton (cm) 16
Weight, master carton (kg) 18
